Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine

Name: Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine
Brand: Zaozhuang NO.1
Price: 8800 USD

China Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine wholesale

Brand Name : Zaozhuang NO.1

Model Number : Z3050

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 8800USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Maximum bore diameter(mm） : 50

Distance from spindle face to base face（mm） : 350-1600

Distance from spindle center line to column busbar（mm） : 320-1220

Column diameter（mm） : 350

Spindle stroke（mm） : 315

Spindle taper hole (Morse) : MT5

Spindle speed range（rpm） : 25-2000

Size of worktable（mm） : 650x500x500

Spindle box horizontal movement distance（mm） : 1250

Contact Now

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine

The Z3050 Radial Drilling Machine is a highly versatile solution for hole-making applications. Its design allows the arm to rotate around the column and the head to traverse along the arm, enabling the multi-hole machining of large workpieces. The machine delivers flexible operation and powerful performance, making it suitable for drilling, reaming, boring, and counterboring with robust stability.

Standard configuration:

1. hydraulic transmission

2. Hydraulic pre - selection

3.hydraulic clamping

4.hydraulic change speed

5.mechanical and electrical double insurance

Product specification:

PARAMETER ITEM	Unit	Z3050x16
Maximum bore diameter	mm	50
Distance from spindle face to base face	mm	350-1600
Distance from spindle center line to column busbar	mm	320-1220
Column diameter	mm	350
Spindle stroke	mm	315
Spindle taper hole (Morse)	-	MT5
Spindle speed range	rpm	25-2000
Spindle speed series	step	16
Spindle feed range	mm/r	0.04-3.20
Spindle feed series	step	16
Size of worktable	mm	650x500x500
Spindle box horizontal movement distance	mm	1250
Spindle motor power	kw	4
Weight of the whole machine	kg	3500
External dimensions	mm	2500x1070x2840

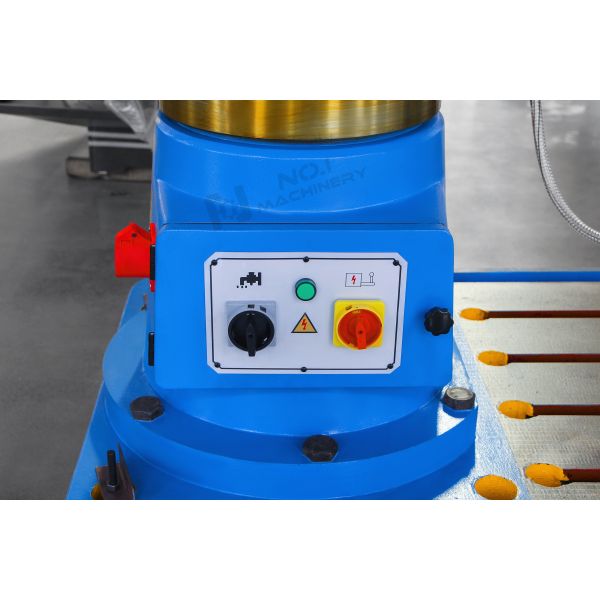

Details Display:

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine

Chinese Manufacturers Z3050X16 Drilling Diameter 50mm Radial Drilling Machine Images
