Optimal price Lathe CA6250 Horizontal Universal Metal Lathe for Parts Processing
The CA series lathes excel at turning end faces, inner/outer cylinders, conical surfaces, and other rotating surfaces of various materials. They can precisely machine metric, inch, module, and diametral pitch threads, while also effortlessly handling tasks like drilling, reaming, and oil groove pulling.
Standard Configuration:
1.400mm Guide rail width 400mm
2.Skateboard Box with rapid advance and retreat
3.Processing thread variety, no need to change gear
4.Powerful Tool Holder:25x25mm
5.Can be heavy cutting
Optional Configuration:
1.Center rack and knife rack
2.Chuck protection, Tool Holder Protection, lead screw protection
3.Rear baffle
4.Digital display
5.Pedal to the brakes
6.Change the tool holder quickly
7.Four-jaw Chuck
8.Drill Chuck Joint Rod
Specification:
| PARAMETER ITEM | UNIT | CA6140 | CA6240 | CA6150 | CA6250 |
| Max. swing over bed | mm | 400 | 400 | 500 | 500 |
| Rotation diaeter on tool post | mm | 210 | 210 | 300 | 300 |
| Swing diameter in saddle x effective length | mm | - | 630x210 | - | 720x210 |
| Maximum workpiece length / Maximum turning length | mm | 750/650 1000/900 1500/1400 2000/1900 |
| Distance from spindle center to bed plane guide | mm | 205 | 205 | 250 | 250 |
| Spindle Bore/Spindle Bore Front Taper |
| Φ52/MT6[80] |
| Spindle speed series forward/reverse |
| 24/12 |
| Spindle speed range forward | r/min | 50Hz:1-1600 60Hz:12-1680 |
| Reverse | r/min | 50Hz:14-1580 60Hz:16.8-1896 |
| Vertical feed/Standard feed | mm/r | 0.08-1.59 |
| Minimum feed | mm/r | 0.028-0.054 |
| Maximum feed | mm/r | 0.86-3.16 |
| Rapid moving speed of tool holder | m/min | portrait4 horizontal2 |
| Max stroke of upper/lower turret | mm | 140/320 | 140/320 | 140/320 | 140/420 |
| Rotation angle of tool rest turntable | . | ±90 |
| Distance from spindle centerline to tool support surface | mm | 26 |
| Tool holder section size | mm | 25x25 |
| Lead screw pitch | mm | 12 |
| Main motor power | kw | 7.5 |
| weight of lathe (750mm) | kg | 1990 | 1990 | 2060 | 2060 |
| weight of lathe (1000mm) | kg | 2070 | 2070 | 2140 | 2140 |
| weight of lathe (1500mm) | kg | 2220 | 2220 | 2290 | 2290 |
| weight of lathe (2000mm) | kg | 2570 | 2570 | 2640 | 2640 |
| Lathe outline size(750mm) | mm | 2418x1000x1267 | 2418x1000x1267 | 2418x1037x1312 | 2418x1037x1312 |
| Lathe outline size(1000mm) | mm | 2668x1000x1267 | 2668x1000x1267 | 2668x1037x1312 | 2668x1037x1312 |
| Lathe outline size(1500mm) | mm | 3168x1000x1267 | 3168x1000x1267 | 3168x1037x1312 | 3168x1037x1312 |
| Lathe outline size(2000mm) | mm | 3668x1000x1267 | 3668x1000x1267 | 3668x1037x1312 | 3668x1037x1312 |

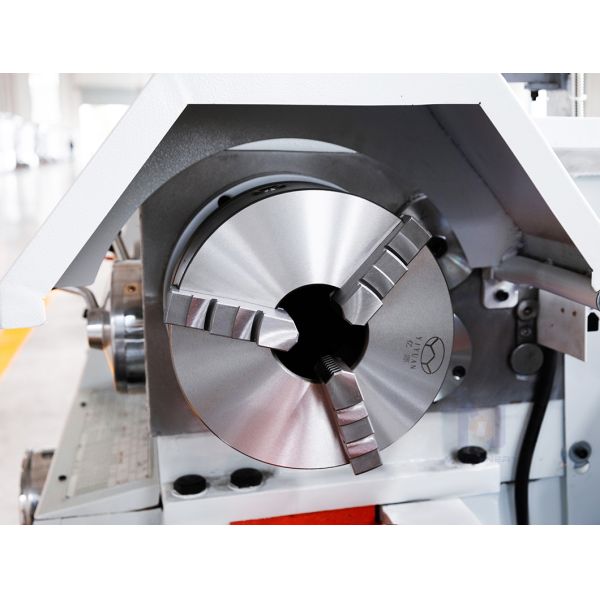

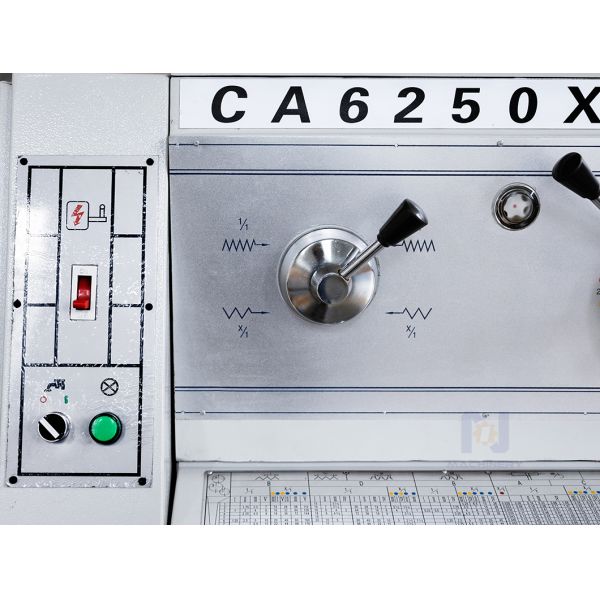

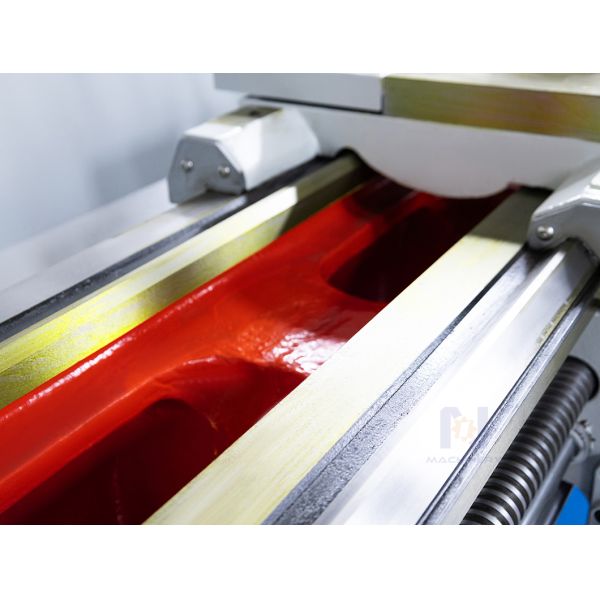

Details Display:
|
|
Optimal price Lathe CA6250 Horizontal Universal Metal Lathe for Parts Processing Images
|
