China Factory Sales CA6150 Horizontal Lathe Traditional Torno Work Manual Metal Lathe

Name: China Factory Sales CA6150 Horizontal Lathe Traditional Torno Work Manual Metal Lathe
Brand: Zaozhuang NO.1
Price: 6500 USD

China China Factory Sales CA6150 Horizontal Lathe Traditional Torno Work Manual Metal Lathe wholesale

Brand Name : Zaozhuang NO.1

Model Number : CA6150

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 6500USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Max. swing over bed : 500mm

Rotation diaeter on tool post : 300mm

Swing diameter in saddle x effective length : 720x210mm

Maximum workpiece length / Maximum turning length : 750/1000/1500/2000/3000mm

Distance from spindle center to bed plane guide : 250mm

Spindle Bore/Spindle Bore Front Taper : Φ52/MT6[80]

Tool holder section size : 25x25mm

Spindle speed range forward : 50Hz:1-1600 60Hz:12-1680 r/min

Main motor power : 7.5kw

Contact Now

China Factory Sales CA6150 Horizontal Lathe Traditional Torno Work Manual Metal Lathe

Featuring a high-strength cast iron bed and a precision gear drive system for stable machining and durability, the CA6150 is a classic horizontal manual lathe. It is equipped with a 7.5kW main motor, a 25x25mm Powerful Tool Holder, a 52/80mm spindle diameter, and a 500mm maximum swing diameter, enabling it to conduct various turning operations such as external cylindrical, internal bore, and thread turning—making it a popular choice in machinery manufacturing and maintenance.

Standard Configuration:

1.400mm Guide rail width 400mm

2.Skateboard Box with rapid advance and retreat

3.Processing thread variety, no need to change gear

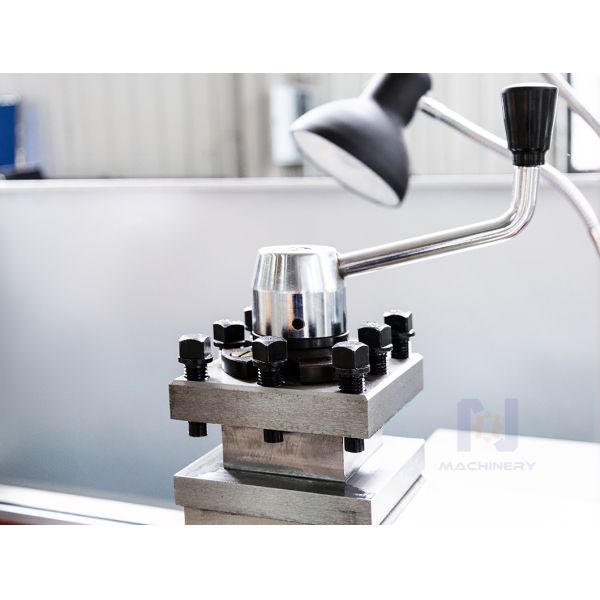

4.Powerful Tool Holder:25x25mm

5.Can be heavy cutting

Optional Configuration:

1.Center rack and knife rack

2.Chuck protection, Tool Holder Protection, lead screw protection
3.Rear baffle
4.Digital display
5.Taper test scale
6.Change the tool holder quickly
7.Four-jaw Chuck
8.Drill Chuck Joint Rod
9.Pedal to the brakes
Specification:
  PARAMETER ITEM
 UNIT
 CA6140
 CA6240
 CA6150
 CA6250

 Max. swing over bed
 mm
 400
 400
 500
 500

 Rotation diaeter on tool post
 mm
 210
 210
 300
 300

 Swing diameter in saddle x effective length
 mm
 -
 630x210
 -
 720x210

 Maximum workpiece length / Maximum turning length
 mm
 750/650 1000/900 1500/1400 2000/1900

 Distance from spindle center to bed plane guide
 mm
 205
 205
 250
 250

 Spindle Bore/Spindle Bore Front Taper

 Φ52/MT6[80]

 Spindle speed series forward/reverse

 24/12

 Spindle speed range forward
 r/min
 50Hz:1-1600 60Hz:12-1680

 Reverse
 r/min
 50Hz:14-1580 60Hz:16.8-1896

 Vertical feed/Standard feed
 mm/r
 0.08-1.59

 Minimum feed
 mm/r
 0.028-0.054

 Maximum feed
 mm/r
 0.86-3.16

 Rapid moving speed of tool holder
 m/min
 portrait4 horizontal2

 Max stroke of upper/lower turret
 mm
 140/320
 140/320
 140/320
 140/420

 Rotation angle of tool rest turntable
 .
 ±90

 Distance from spindle centerline to tool support surface
 mm
 26

 Tool holder section size
 mm
 25x25

 Lead screw pitch
 mm
 12

 Main motor power
 kw
 7.5

 weight of lathe (750mm)
 kg
 1990
 1990
 2060
 2060

 weight of lathe (1000mm)
 kg
 2070
 2070
 2140
 2140

 weight of lathe (1500mm)
 kg
 2220
 2220
 2290
 2290

 weight of lathe (2000mm)
 kg
 2570
 2570
 2640
 2640

 Lathe outline size(750mm)
 mm
 2418x1000x1267
 2418x1000x1267
 2418x1037x1312
 2418x1037x1312

 Lathe outline size(1000mm)
 mm
 2668x1000x1267
 2668x1000x1267
 2668x1037x1312
 2668x1037x1312

 Lathe outline size(1500mm)
 mm
 3168x1000x1267
 3168x1000x1267
 3168x1037x1312
 3168x1037x1312

 Lathe outline size(2000mm)
 mm
 3668x1000x1267
 3668x1000x1267
 3668x1037x1312
 3668x1037x1312

 Details Display:

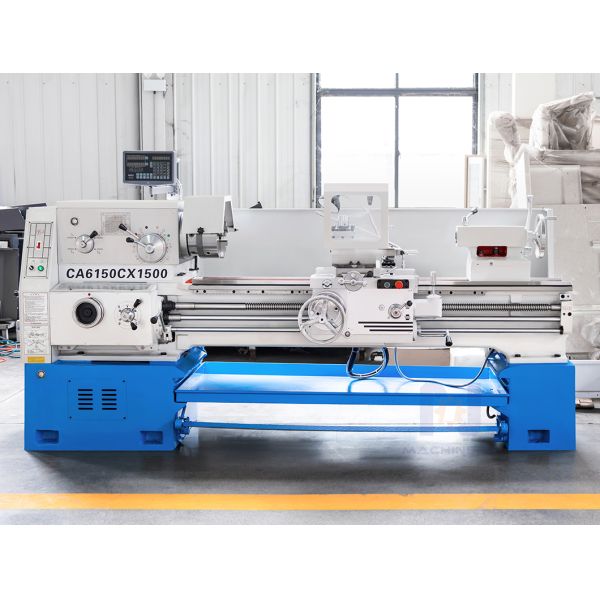

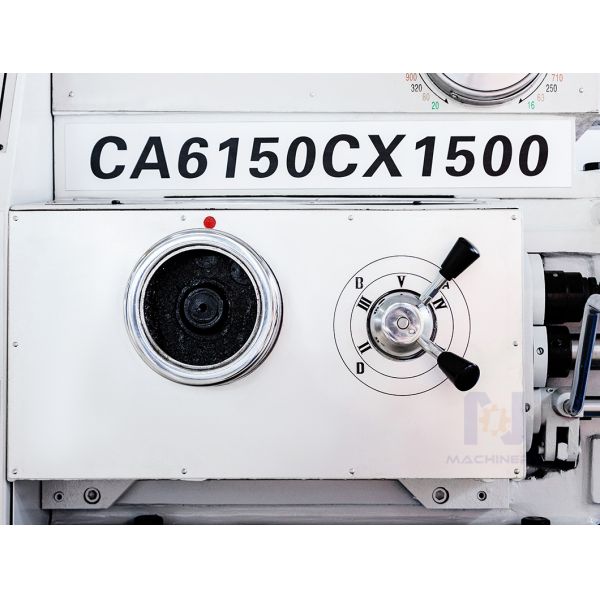

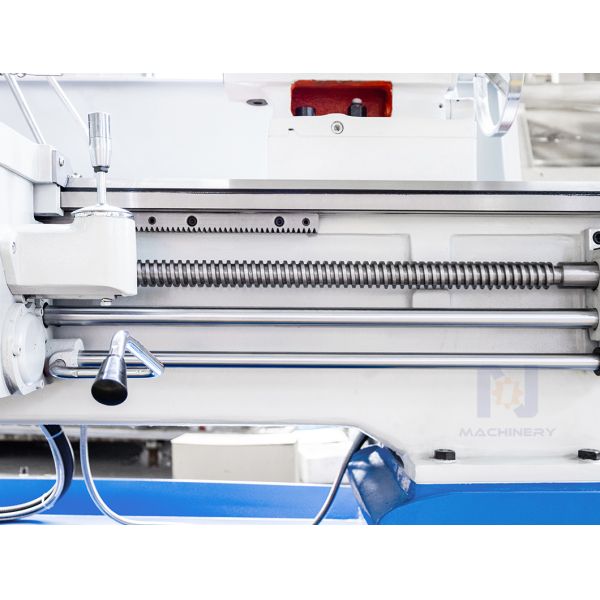

China Factory Sales CA6150 Horizontal Lathe Traditional Torno Work Manual Metal Lathe Images
